How to Prevent Fireplace Grate Melt Down or Burn Through

Does your fireplace grate look like the one above? Has it burned through in the center? Find out what causes fireplace grate melt down and learn how to make your fireplace grate last longer. Put an end to grate burn-through.

What Causes Fireplace Grate Melt Down?

Heat will oxidize (rust) any metal made with iron. That includes cast iron and steel. Over time, heating your grate again and again will cause the rusting process to thin the metal to the point that it bends or even severs.

How to Make Your Fireplace Grate Last Longer

However, there are things you can do to prevent fireplace grate melt down and make your grate last longer.

1.  After the fire goes out, remove the ashes that accumulate under the grate.
When burning coals fall through your grate and land upon a deep bed of ashes, the coals remain close to your grate instead of falling to the floor of the firebox. Hot coals increase oxidation, especially if they are touching the grate.

In addition, cool air should enter the firebox under the grate and rise to provide oxygen to the burning wood. However, a deep accumulation of ashes under the grate disrupts that necessary draft of oxygen. A fireplace with a good draft also generates less ash than a fireplace whose air flow is choked off by ash build-up.

Removing ashes after every use of your fireplace is the single best thing you can do to prevent fireplace grate melt down and extend the useful life of your fireplace grate. See what to do with those ashes.

2.  Try to move at least some of the heat away from the center of the grate.
Grates almost always fail in the middle because heat is concentrated there and because many grates are not well supported in the center. By distributing firewood and coals over the entire width of the grate, rather than moving them towards the center, you will help prevent fireplace grate melt down and prolong the life of your grate.

3.  Don’t douse your fireplace fire with water.
You may remember from Smoky the Bear or scout training to put out a campfire by stirring the embers and pouring water on the fire. That works for campfires, but the water can rust a fireplace grate. Banking your fire is the best solution. If you must put the fire out, stir the embers and add sand to extinguish your fireplace fire.

4.  Buy a cast iron grate rather than a grate made with welded steel bars.
Cast iron withstands heat better than steel does. Steel begins to soften and bend at about 1000 degrees Fahrenheit, while it takes about
1400 degrees to soften cast iron. Oak, the wood most often used in fireplaces, can reach temperatures near 1000 degrees when burning briskly.

5.  Buy a grate with the thickest material you can afford.
It just stands to reason it takes longer for a thick piece of metal to rust away than
it takes for a thinner piece. A grate made with 1” by 1” steel bar has four times as much metal as a grate made with 1/2” steel bar.

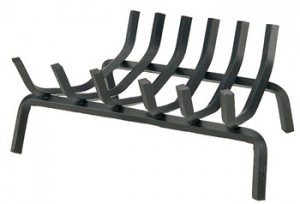

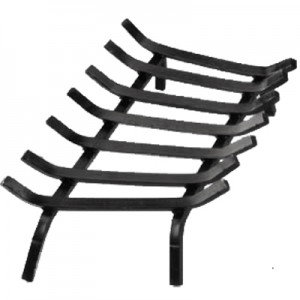

Compare the 3/4 inch bar stock on the left with the 1 1/8 inch by 13/16 inch bars on the grate on the right:

6. Get a fireplace grate with a Lifetime Warranty.

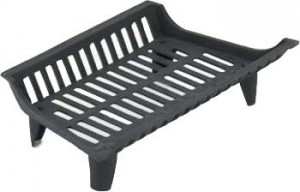

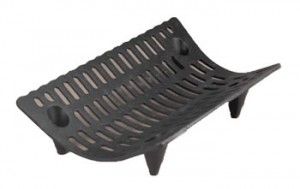

When you purchase a grate that you know the manufacturer will stand behind, you can have peace of mind. The Pilgrim brand of fireplace grates, for example, have a Lifetime Warranty against burn-through. The Pilgrim Lifetime Warranty provides one replacement grate if yours fails. The Pilgrim fireplace grates below have Lifetime Warranties:

Buying a cast iron grate or a steel grate with the thick bars and a Lifetime Warranty is the best way to get off to a good start for an enduring fireplace grate. Distributing the heat and properly tending ashes will definitely prolong the life of your fireplace grate.
