Outside Mount Chimney Caps

Outside Mount Chimney Caps

About Outside Mount Chimney Caps

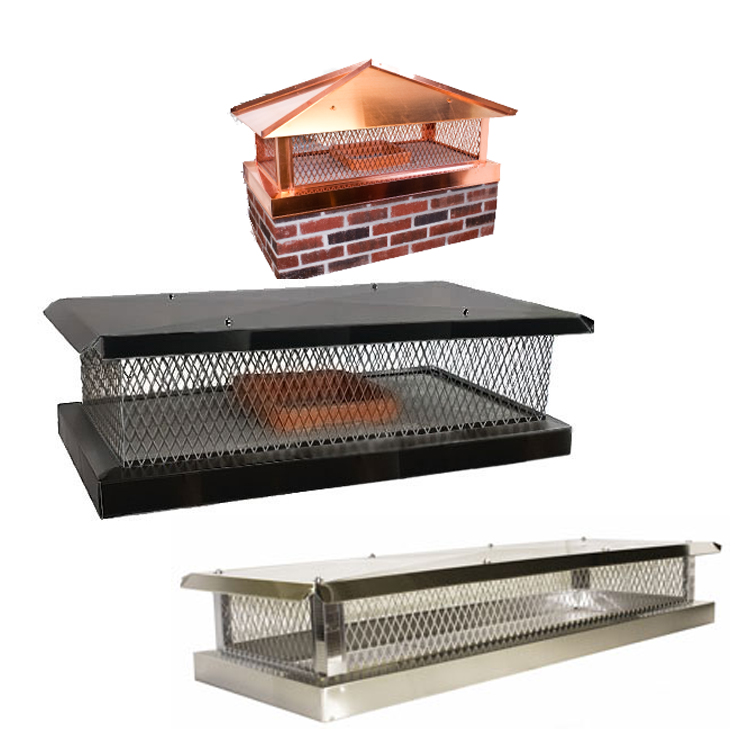

There are two basic types of outside mount chimney caps – those with a metal skirt that attaches to the sides of the chimney and those with an adjustable band that goes around the chimney and tightens at each corner. Almost all outside mount chimney caps are custom made to dimensions you specify, in the metal of your choice, and with the lid style you prefer.

Custom Outside Mount Chimney Caps Band-Around Chimney Caps

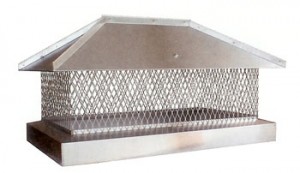

Stainless Steel Outside Mount Chimney Cap
with metal skirt

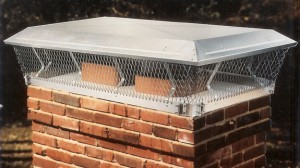

Aluminum Band-Around Chimney Cap
with band that tightens at the corners

Appropriate Uses for Outside Mount Chimney Caps

outside_mount_on_chimney
Outside Mount Chimney Caps are appropriate for single flue and multi-flue chimneys of any size.

outside_mount_on_chimneyThese chimney caps that mount to the sides of the chimney itself are not appropriate for Air-Cooled Flues (flues with two or more concentric pipes with air between the pipes.) Use Air-Cooled Chimney Caps for those flues.

outside_mount_on_chimneyStainless Steel Band-Around chimney caps are appropriate regardless of they type of fuel you use. Aluminum Band Arounds, however, are not appropriate for oil appliances or if wood is your primary heating fuel.

How to Measure for Outside Mount Chimney Caps

outside_mount_on_chimneyTo measure for an outside mount chimney cap, find and write down the length of the longest side and then write down the lengths of the remaining three sides, going clockwise from the longest side.

outside_mount_on_chimney
Also measure the height from the top row of bricks to the top of the tallest flue.



Lid Options

outside_mount_on_chimneyExcept with the Band-Around style, the chimney caps can be made with lids of any pitch between 3/12 (14 degree) and 12/12 (45 degree). Many people¬†choose to match the pitch of their home’s roof.

Roof Pitch Selection for Designer Lid Outside Mount Chimney Caps

Roof pitch options for outside mount chimney caps

outside_mount_on_chimney
In areas with lots of heavy, wet snow, pitches 10/12 to 12/12 are best for shedding snow.



Metal and Finish Options

outside_mount_on_chimneyTraditional Outside Mount Chimney Caps are available in copper or in stainless steel . The stainless steel ones can be powdercoated with a baked-on, exterior grade paint finish, such as brown or black.

outside_mount_on_chimney
Band-Around style chimney caps come in aluminum or stainless steel.



Screen Mesh Options for Outside Mount Chimney Caps

outside_mount_on_chimneyYou can have a traditional outside mount chimney cap made with the standard 3/4″ mesh or with California small 5/8″ mesh . The 5/8″ mesh is required by California code.

outside_mount_on_chimney
Band-Around chimney caps are only available in standard mesh.



outside_mount_on_chimney
If you live in any area with a fire hazard, choosing 5/8″ mesh is a good idea.



Quality!

Stainless Steel and Copper Outside Mount Chimney Caps have Lifetime Warranties!
