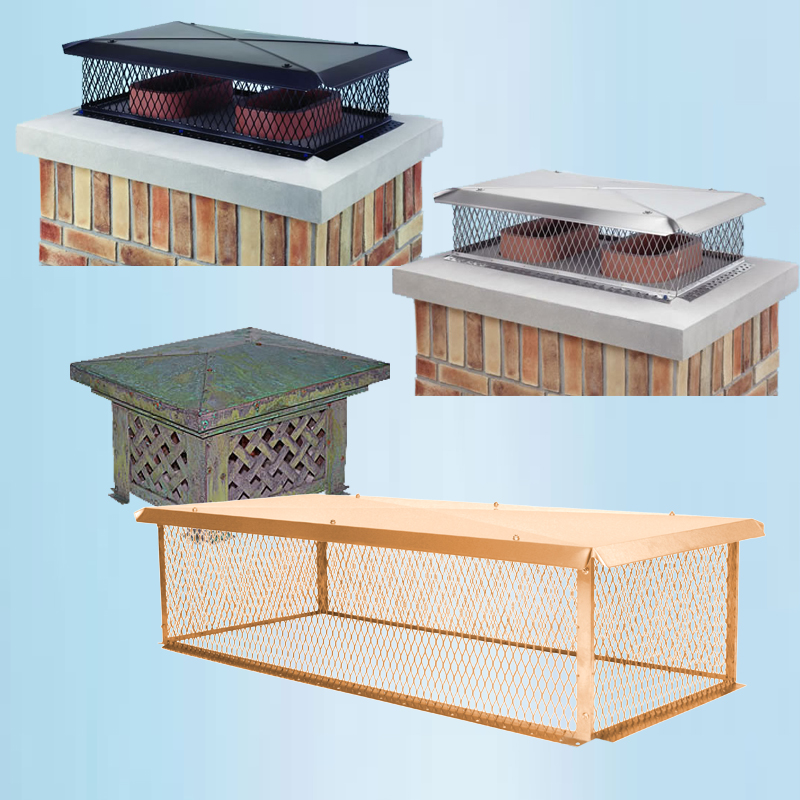

Multi Flue Chimney Caps

Multi flue Chimney Caps

How to Measure for and Select Top Mount Multi Flue Chimney Caps

Here’s what you need to know about size, height and mesh to select the correct multi flue chimney caps that mount to the top of your chimney’s cement crown. These top-mount chimney caps can also be used to cover a single flue.

Size for Multi Flue Chimney Caps

You need to take three measurements in order to choose the correct top mount chimney cap.

First, measure the length and width of your entire chimney, as shown by the red dotted line in the diagram to the right.

Multi Flue Chimney Caps - Measure for Size

Next, measure the length and width of a rectangle just big enough to include all the flues on your chimney, as shown by the black dotted line. This is the minimum screen size.

Your chimney cap can be any screen size between the dotted red rectangle and the dotted black rectangle.

Last, measure the height of the tallest flue above the top of the chimney, as shown by the blue dotted line. You will want a multi flue chimney cap at least 5 inches taller than the tallest flue.

Multi Flue Chimney Caps - Measure for Height

Most multi flue chimney caps have mounting flanges that add 1 1/2 inches to each side of the screen. So, for example, a top mounting chimney cap with a screen size of 13 by 17 inches will cover 16 by 20 inches of the top of your chimney.

Some multi flue chimney caps can be installed with the mounting flanges inside the screen (facing toward the flues) or outside of it (facing toward the edges of the chimney.)

If your goal is to protect the top of your chimney from deterioration caused by weather and acid rain, choose the largest screen size that will fit within the red dotted line.

If your goal is to be as economical as possible, select a chimney cap the size of the black dotted line.

Height for Multi Flue Chimney Caps

Some chimney caps are taller than others. The height of the screen part of a chimney cap is the screen height.

There must be at least 5 inches of clearance between the top of your tallest flue and the lid (or roof) of the chimney cap. Select a chimney cap with a screen height 5 inches above your tallest flue (at least 5 inches taller than the blue dotted line .)

Multi Flue Chimney Cap Mesh: Standard 3/4″ or Small ‘California’ 5/8″ Mesh

California Code requires spark arrestor chimney caps to have mesh screens with openings no larger than 5/8 of an inch instead of the standard 3/4 inch mesh used elsewhere.  The intention of the Code is to keep glowing coals from leaving the chimney and starting wildfires.   A few other communities in the southwest have similar codes.  If you live in any wildfire prone area, selecting a 5/8″ mesh spark arrestor chimney cap is a good idea.  It’s available on nearly all of multi-flue chimney caps.
